What type of pallet rack do I need?

Selective teardrop rack is the starting point for mixed SKUs because every pallet stays directly accessible. Selective teardrop is the default for mixed SKUs; pushback stores two to six deep LIFO by SKU; pallet flow supports FIFO or dated stock; drive-in suits bulk quantities of few SKUs; cantilever supports long loads; carton flow serves case picking. We compare access, rotation and occupied positions before recommending a system.

How much does pallet rack cost?

Price depends on pallet positions, rack height, beam capacity, decking, freight and installation. Send your pallet size, heaviest load per level, clear height and building size for a free CAD layout and itemized quote.

What size pallet rack do I need?

A common starting point is 42-inch-deep uprights for standard 48-inch-deep pallets and 96-inch beams for two 40-inch-wide pallets; 108-inch and 144-inch beams are also common, with 144-inch beams accommodating three pallets. Measure your real pallets, including overhang. Rack height follows clear height and forklift lift height, and final dimensions must provide working clearance.

Can I add new bays to my existing pallet rack?

Usually, if the connections and rated configuration match. "Teardrop" is not universal across manufacturers: send photos of the upright face, beam connector and any label so we can match compatible new components.

Do you install pallet rack?

Yes. We handle design, supply and installation with experienced installation crews we schedule and manage. The system is anchored to the floor, aligned to the approved layout and handed over with its load capacities documented.

Industrial pallet racks and warehouse racking systems

Pallet Rack Systems for Greater Indianapolis Warehouses

Name: Indianapolis Pallet Rack
Address: 9105 E 56th St. Ste J #2291, Indianapolis, IN, 46216, US
Telephone: (317) 659-6552
Price range: $$

We supply and install every major type of warehouse racking: pallet rack for full access to each position, pushback and drive-in rack when you need depth, pallet flow for FIFO rotation, cantilever for long loads, and carton flow for case picking.

Pick the system below that matches how your product moves, or call (317) 659-6552 and we will narrow it down with you in one conversation.

(317) 659-6552

Our Warehouse Racking Products

Six systems cover almost every storage problem we see in Central Indiana. Most buildings end up using two of them together.

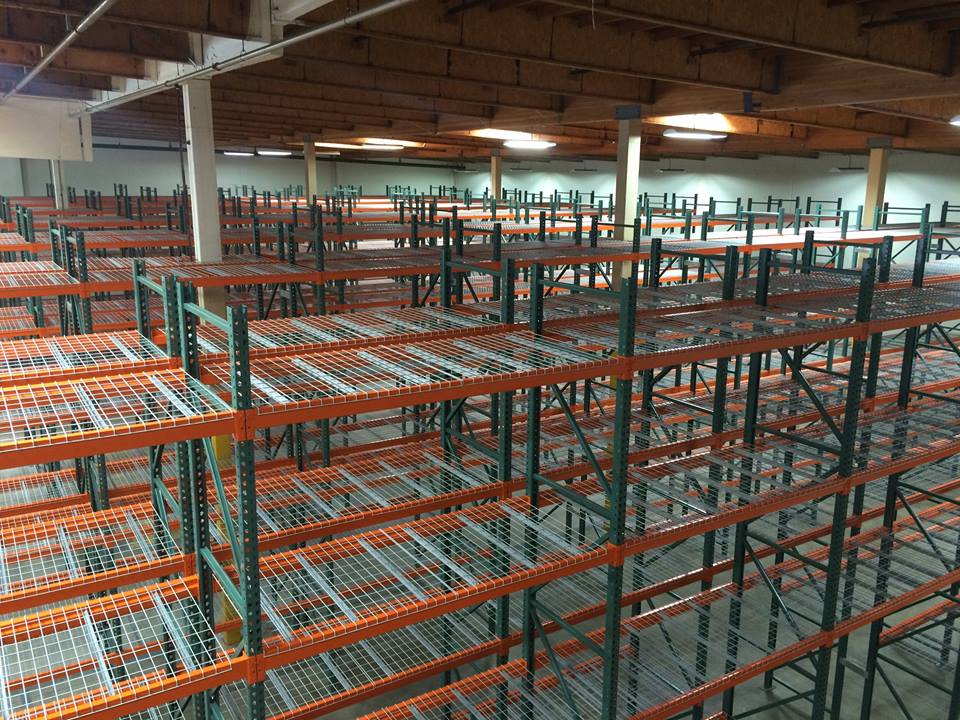

Pallet Rack

Also called selective pallet rack

Every pallet reachable, every time. The baseline we size everything else against.

See details

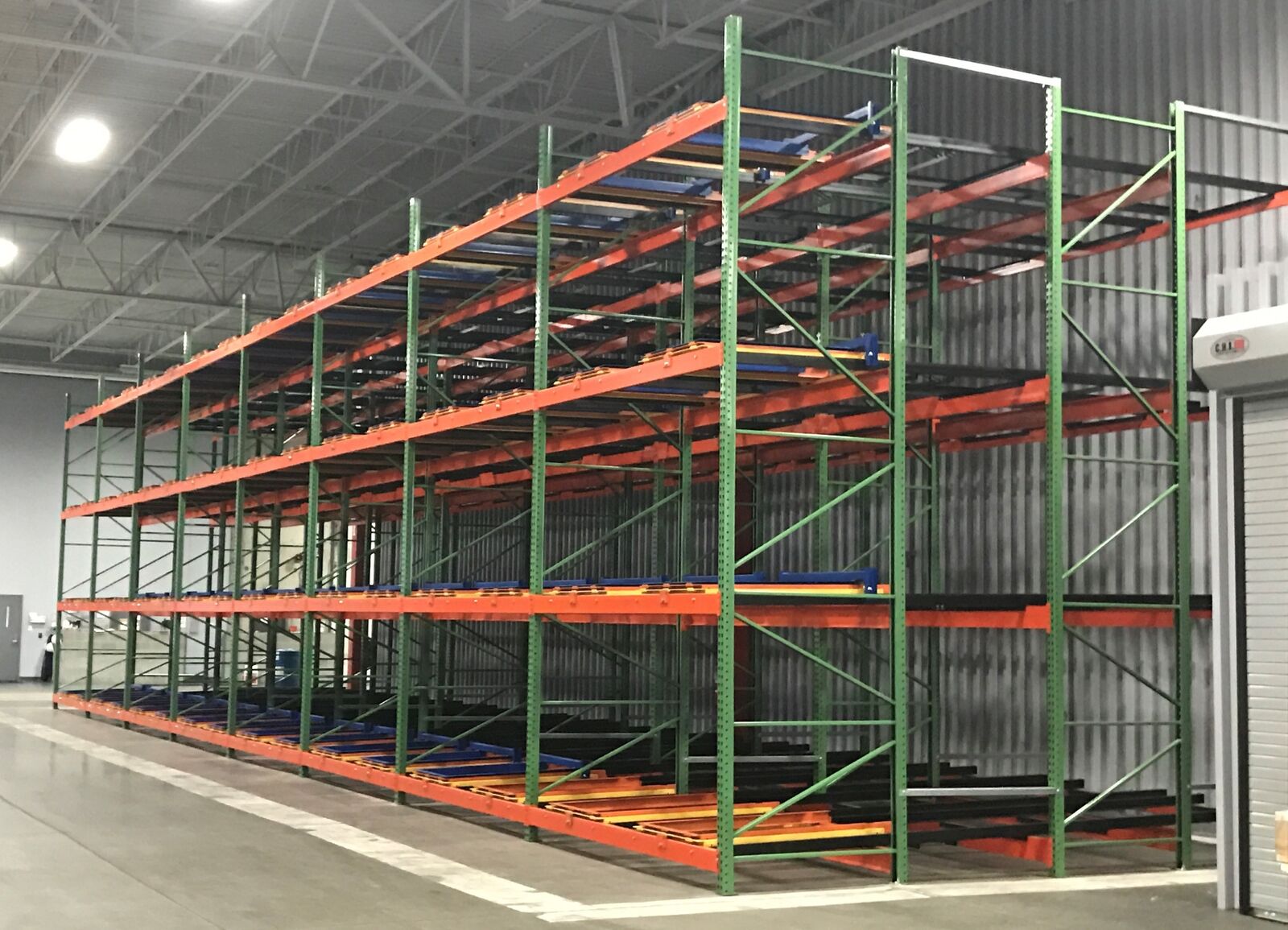

Pushback Rack

Also called push back pallet rack system

Two to six pallets deep from one aisle, without giving up much reach.

See details

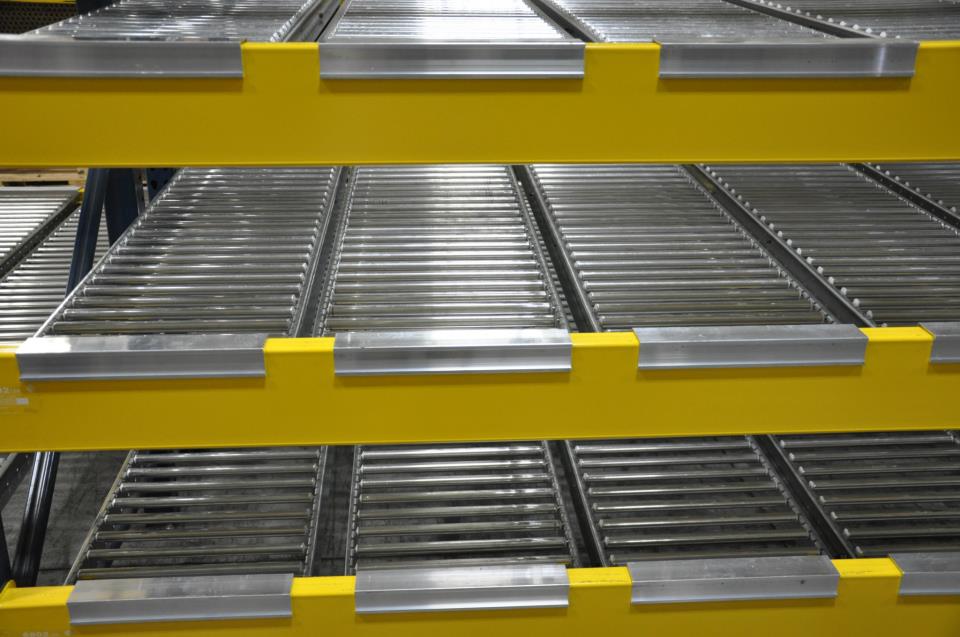

Carton Flow Rack

Also called carton flow shelving

Cases advance to the picker instead of the picker hunting for cases.

See details

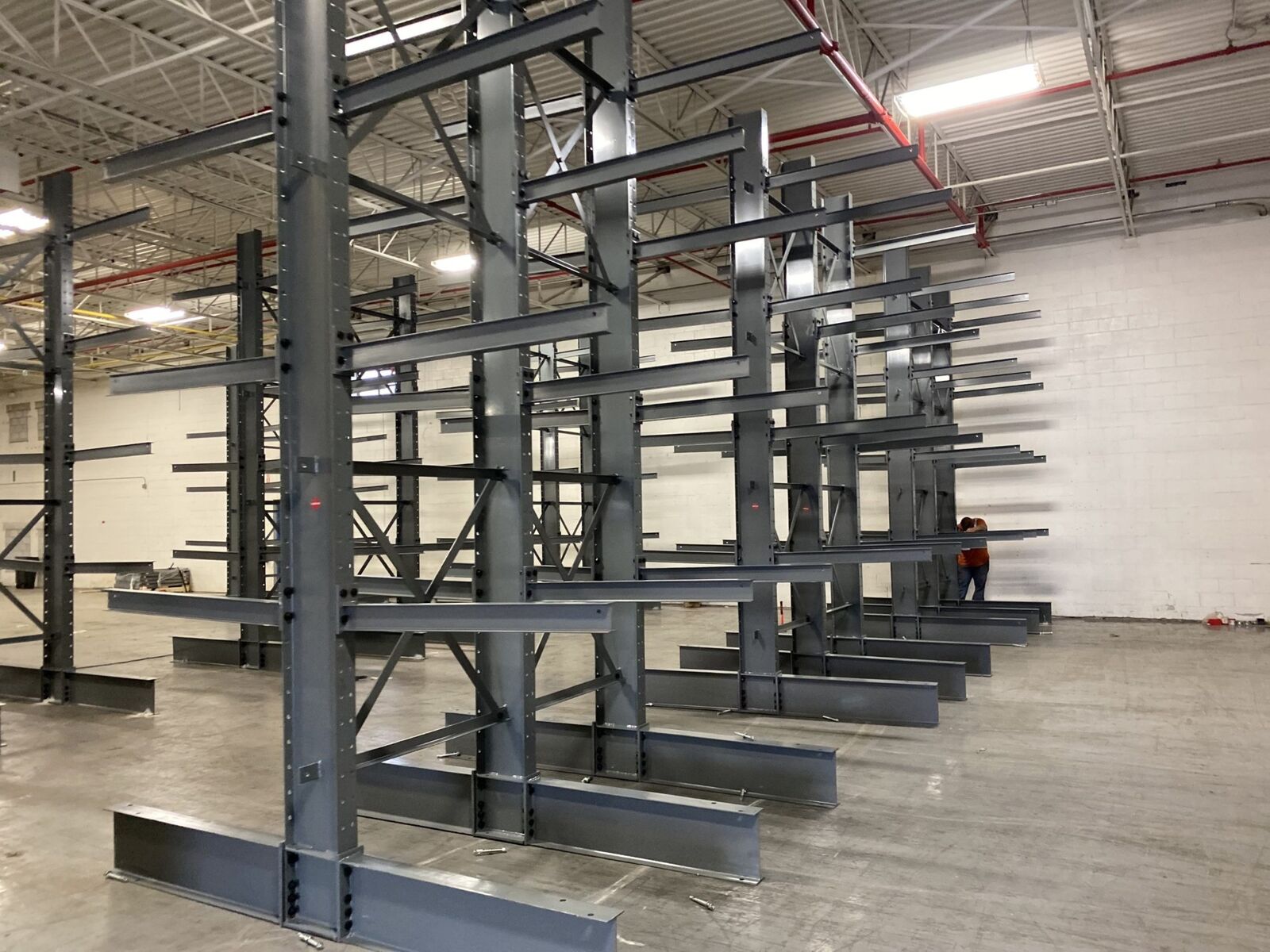

Cantilever Rack

Also called cantilever warehouse racking

Arms with nothing in front of them, built for lumber, pipe, and anything a pallet can't hold.

See details

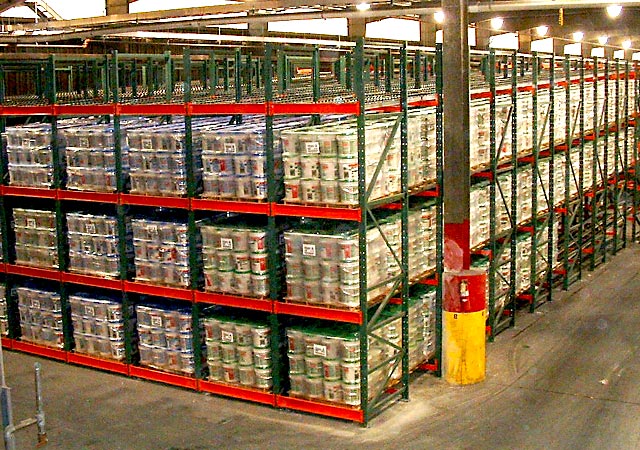

Pallet Flow Rack

Also called flow through racking

Load one side, pick the other, and let gravity enforce first in, first out.

See details

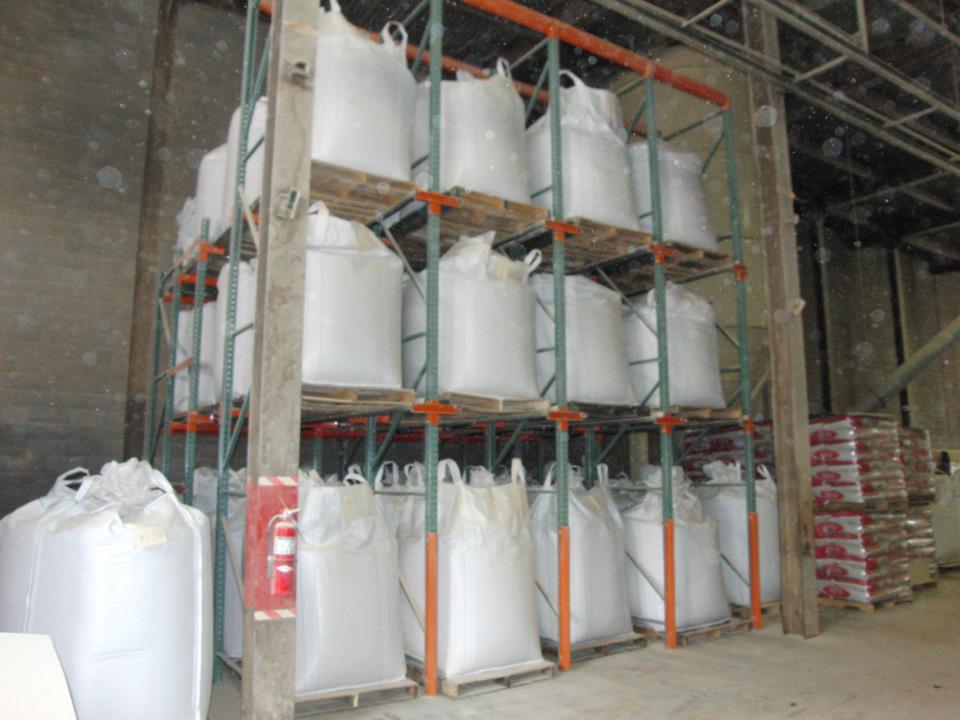

Drive-In Rack

Also called drive through pallet racking

Forklifts enter storage lanes; fewer access aisles leave more floor for bulk pallets.

See details

Choosing Between Rack Types

Four things decide the answer: how many SKUs you carry, how many pallets you hold of each one, how fast product turns, and how much height the building gives you.

Many SKUs with a pallet or two each point to selective pallet rack. Several pallets of the same item favor pushback. Date-driven rotation calls for pallet flow. Large volumes of a few items in a tight footprint suit drive-in. Long material needs cantilever, and case picking needs carton flow.

Free warehouse consultation

CAD layout with pallet position counts

Delivery and professional installation

One local contact from layout to punch list
